Best known for level surface, outstanding quality to-weight proportion and insignificant upkeep, the Balanced Weave Belt is the most adaptable alternative for transports. These are composed with great adaptability and consequently reasonable for passing on an assortment of items that are little or need a ton of help. The belts are generally utilized in preparing, bundling and exchange applications.

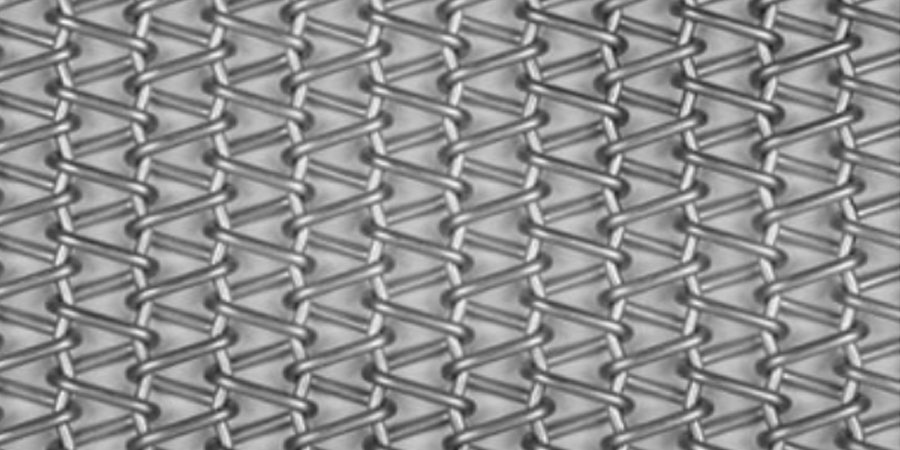

The predominant choice in the conveyor belt industry. It is our most versatile belt used in a variety industries. Balanced weave belts are a series of left and right hand wire mesh spirals joined by a connecting rod or crimped rod. These belts can be made from different alloys such as 304ss and 316ss. Some balanced weave belts are positively driven by a sprocket or a pinroll. Balanced weave belts can be manufactured to match new or existing pinrolls and are available in a wide range of specifications.
Specification : 24 coils of 12 swg/foot width. 20 crimped crossmembers of 10 swg/foot length.
Data : Weight - 14kg/sq. Mt. Thickness - 8mm. with maximum working tension - 1580 lbs/r foot width of the belt.
Services : Specially suitable for glass annealing lehrs.
